FIGHTING SHIPS OF THE WORLD
URUGUAY
AMPHIBIOUS CRAFT
LD40 landing craft (1950s/1972)
41 1988
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LD40 (ex-56CM...), 1980s- 40 LD41 (ex-56CM...), 1980s- 41 |
USA: LD40, 41 | 1950s // 1972: LD40, 41 |
none |
none |
late 1980s: LD41 1996: LD40 |
Technical data
| Displacement standard, t | 25 |
|---|---|
| Displacement full, t | 56 |
| Length, m | 17.1 |
| Breadth, m | 4.33 |
| Draught, m | 1.17 |
| No of shafts | 2 |
| Machinery | 2 Gray Marine 64HN9 diesels |
| Power, h. p. | 450 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 130(9) |
| Armament | none |
| Military load | 1 tank or 60 troops or 30.8 t of cargo |
| Complement | 5 |

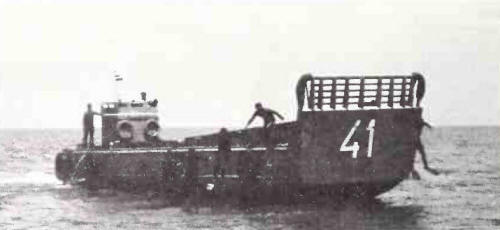

Graphics
41 1988
Project history
Landing craft, mechanized of USN LM(6) type.
Modernizations
None.
Naval service
None.
