NAVYPEDIA


Colonia 1975

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
AR1, 1975- PR10 Colonia	USA	1944 // 1945: AR1	None	None	1988: PR10

Technical data

Displacement standard, t	25
Displacement full, t	34
Length, m	19.2
Breadth, m	4.60
Draught, m	1.20
No of shafts	2
Machinery	2 Hall Scott Defender diesels
Power, h. p.	1260
Max speed, kts	33.5
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	2 x 2 - 12.7/90
Electronic equipment	none
Complement	8

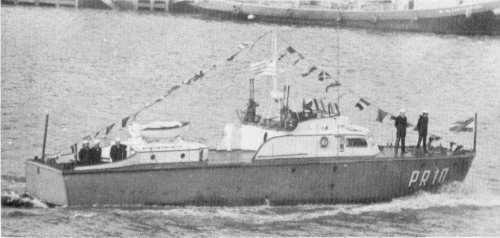

Graphics

Project history

Former USN 63ft AVR class boat. Reclassified from the SAR to patrol in 1975.

Modernizations

None.

Naval service

No significant events.
