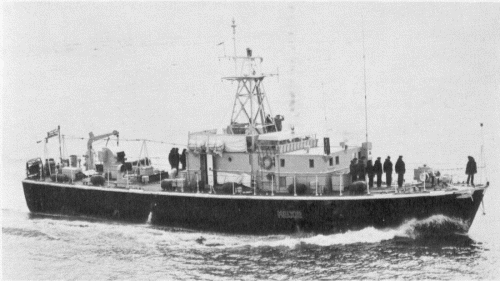

Aveley 1979

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Dingley (ex-Black Bantam)	M2001		White, Cowes		3.9.1952	1953	sold 7.1967
Aveley (ex-Grey Bantam)	M2002		White, Cowes		16.2.1953	1953	Sea Cadets TS 5.1983
Brearley	M2003		White, Cowes		16.6.1953	1953	sold 5.1971
Brenchley	M2004		Saunders-Roe, Anglesey		19.7.1954	1955	sold 1.1966
Brinkley	M2005		Saunders-Roe, Anglesey		14.9.1954	1955	sold 1.1966
Broadley	M2006		Blackmore, Bideford		24.11.1953	1954	fire 29.9.1956
Broomley, 1.1959- Watchful	M2007		Harris, Appledore		14.4.1953	1953	RNR 1.1959, sold 1.1968
Burley, 12.1959- Squirrel	M2008		Dorset Yacht, Poole		6.1.1954	1954	RNR 12.1959, sold 1.1968
Chailey	M2009		Saunders-Roe, Anglesey		11.11.1954	1955	sold 6.1969
Cradley, 1963- Isis	M2010		Saunders-Roe, Anglesey		24.2.1955	1955	RNR 1963, sold 4.1982
Edgeley (ex-Wrentham)	M2011		Dorset Yacht, Poole		1955	---	cancelled 1955

Technical data

Displacement standard, t	123
Displacement full, t	164
Length, m	30.5 pp 32.5 oa
Breadth, m	6.60
Draught, m	1.67
No of shafts	2
Machinery	2 Davey Paxman diesels
Power, h. p.	700
Max speed, kts	13
Fuel, t	diesel oil 15
Endurance, nm(kts)	2350(9)
Armament	1 x 1 - 40/60 Mk 7 or 1 x 1 - 20/70 Mk 7, LL mechanical/magnetic/acoustic minesweeping gear
Electronic equipment	type 978 radar
Complement	15

Standard scale images

Graphics

Project history

Very similar to the 'Ham' class, composite-built with aluminium alloy framing and wooden planked hulls. The programme was cut short with the cancellation of Edgeley. They survived longer than the 'Ham' type because they were re-equipped for minehunting, minus sweep gear; all were either reduced to training or had been sold by the mid 1970s.

Modernizations

1960s, all survived: - minesweeping gear; + divers

Naval service

Broadley burnt 29.9.1956 by accident in Haslar Creek.
