BLACKBURN seaplane carriers (5(2), 1945 - 1946)





Ripon 1946

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ripon F106   Pollock, Faversham   15.3.1945 8.1945 BU 2.1959
Roc F122   Blyth SB, Cowpen Quay   28.3.1945 1945 sold 1959
Walrus, 1953- Skua F116   Blyth SB, Cowpen Quay   28.5.1945 1945 sold 1962
Blackburn F113   Blyth SB, Cowpen Quay   4.2.1946 1946 RNVR drill ship 1950, sold 1968
Seafox F114   Pollock, Faversham   16.5.1946 11.1946 sold 12.1958
Sea Gladiator     Pollock, Faversham   18.12.1948 --- // 9.1949 completed mercantile
Sea Hurricane     Pollock, Faversham   24.9.1949 --- // 2.1950 completed mercantile


Technical data


Displacement standard, t

990

Displacement full, t
Length, m

64.0 or 52.6

Breadth, m

10.7 or 9.10

Draught, m

4.19 or 3.05

No of shafts

2

Machinery

Crossley diesels

Power, h. p.

960

Max speed, kts

10.5

Fuel, t

diesel oil 60

Endurance, nm(kts)
Armament

Ripon, Roc, Walrus: 1 x 1 - 76/40 12pdr 12cwt QF Mk V, 2 x 1 - 20/70 Oerlikon Mk II/IV

Blackburn, Seafox: 1 x 1 - 76/40 HA/LA Mk IX, 2 x 1 - 20/70 Mk III

Complement


Graphics

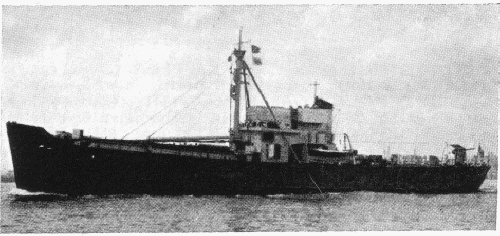

<i>Ripon</i> 1946
Ripon 1946


Aircraft facilities

There were 6t and 12t derricks to handle seaplanes.

Project history

Ships were intended to seaplanes maintenance.

Modernizations

none.

1/1946: 1 x 1 - 76/40 HA/LA Mk IX, 2 x 1 - 20/70 Mk III

Naval service

no significant events.
