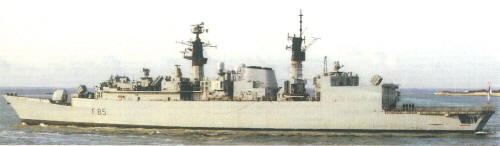

Cumberland 2003 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Cornwall	F99	1031	Marconi Marine (YSL), Scotstoun	19.9.1983	14.10.1985	23.4.1988	BU 7.2013
Cumberland	F85	1032	Marconi Marine (YSL), Scotstoun	12.10.1984	21.6.1986	10.6.1989	BU 7.2013
Campbeltown	F86	1378	Cammell Laird, Birkenhead	4.12.1985	7.10.1987	27.5.1989	BU 7.2013
Chatham	F87	126	Swan Hunter, Wallsend	12.5.1986	20.1.1988	4.5.1990	BU 7.2013

Technical data

Displacement standard, t	4280
Displacement full, t	4850
Length, m	135.7 pp 148.1 oa
Breadth, m	14.8
Draught, m	5.35 hull 6.40 screws
No of shafts	2
Machinery	COGAG: 2 Rolls-Royce Spey SM1A gas turbines + Rolls-Royce Tyne RM1C gas turbines
Power, h. p.	37540 + 10680 = 48220
Max speed, kts	30
Fuel, t	gas turbine oil 700
Endurance, nm(kts)	4500(18)
Armament	F99, 85, 86: 2 x 4 Harpoon SSM (8 RGM-84C), 2 x 6 Sea Wolf GWS25 Mod.3 SAM (72 Sea Wolf GWS25), 1 x 1 - 114/55 Mk 8, 1 x 7 - 30/80 Goalkeeper, 2 x 1 - 30/75 DES-30B, 2 x 3 - 324 STWS.2 TT, 2 helicopters (Lynx) or 1 helicopter (Sea King or Merlin) F87: 2 x 4 Harpoon SSM (8 RGM-84C), 2 x 6 Sea Wolf GWS25 Mod.3 SAM (72 Sea Wolf GWS25), 1 x 1 - 114/55 Mk 8, 1 x 7 - 30/80 Goalkeeper, 2 x 1 - 30/75 DES-30B, 2 x 1 - 20/90 GAM-B01, 2 x 3 - 324 STWS.2 TT, 2 helicopters (Lynx) or 1 helicopter (Sea King or Merlin)
Electronic equipment	F99: type 967M/968, 2x type 911, Goalkeeper, type 1006 radars, type 2016,  2031Z sonars, 2x GSA.8/GPEOD Sea Archer E/O directors, UAA-2, 2x type 675 ECM suites, 4x Sea Gnat decoy RL, 2x DEC laser-dazzlers, type 182 torpedo decoy, CACS-5 CCS F85-87: type 967M, type 968, 2x type 911, Goalkeeper, type 1006 radars, type 2050,  2031Z sonars, 2x GSA.8/GPEOD Sea Archer E/O directors, UAA-2, 2x type 675 ECM suites, 4x Sea Gnat decoy RL, 2x DEC laser-dazzlers, type 182 torpedo decoy, CACS-5 CCS
Complement	232

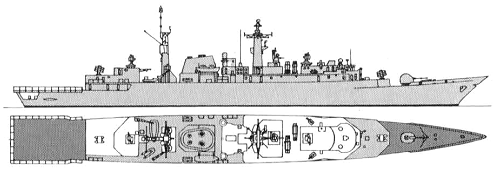

Standard scale images

Graphics

Project history

Four more Type 22s were announced at the end of 1982, to replace Falklands losses, but they were redesigned to form Batch 3, with improved command facilities (including flag accommodation), new SSMs, a 114mm gun and a close-in weapon system (CIWS). The hull of the Batch 2 design was retained, but armament was rearranged to provide space for the medium-calibre gun. The eight RGM-84C Harpoon missiles were positioned athwartships behind the wheelhouse, with the 30mm Goalkeeper CIWS one deck up.

To mark the numerous differences and enhanced capability the 'B' series names gave way to a 'C' series. They have the CACS-5 command system (a version of CACS-1) and the gun was controlled by two GSA.8A Sea Archer electro-optical directors (port and starboard above the wheelhouse).

Modernizations

late 1990s, all: - UAA-2, 2x type 675 ECM suites; + UAT-1 ECM suite, 4x DLF-3 floating decoy launchers

late 1990s, Cornwall: - type 2016 sonar; + type 2050 sonar

early 2000s, all: - type 1006 radar; + type 1007 or type 1008 radar

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
