"COLONY" frigates (ANGUILLA) (21, 1943 - 1944)

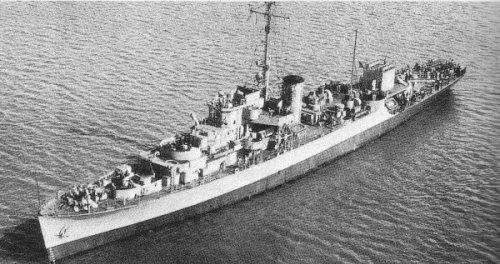

sister-ship Peoria 1945

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Anguilla (ex-Hallowell, ex-PF72) K500 1654 Walsh - Kaiser, Providence, USA 4.1943 14.7.1943 10/1943 to USA 5.1946
Antigua (ex-Hammond, ex-PF73) K501 1655 Walsh - Kaiser, Providence, USA 4/1943 26.7.1943 11/1943 to USA 5.1946
Ascension (ex-Hargood, ex-PF74) K502 1656 Walsh - Kaiser, Providence, USA 4/1943 7.8.1943 11/1943 to USA 5.1946
Bahamas (ex-Hotham, ex-PF75) K503 1657 Walsh - Kaiser, Providence, USA 4/1943 17.8.1943 12/1943 to USA 6.1946
Barbados (ex-Halstead, ex-PF76) K504 1658 Walsh - Kaiser, Providence, USA 5/1943 27.8.1943 12/1943 to USA 4.1946
Caicos (ex-Hannam, ex-PF77) K505 1659 Walsh - Kaiser, Providence, USA 4/1943 6.9.1943 12/1943 to USA 12.1945
Cayman (ex-Harland, ex-PF78) K506 1660 Walsh - Kaiser, Providence, USA 7/1943 6.9.1943 1/1944 to USA 4.1946
Dominica (ex-Harman, ex-PF79) K507 1661 Walsh - Kaiser, Providence, USA 7/1943 14.9.1943 1/1944 to USA 4.1946
Labuan (ex-Gold Coast, ex-Harvey, ex-PF80) K584 1662 Walsh - Kaiser, Providence, USA 8/1943 21.9.1943 2/1944 to USA 5.1948
Montserrat (ex-Hornby, ex-PF82) K586 1664 Walsh - Kaiser, Providence, USA 8/1943 27.9.1943 8/1944 to USA 6.1946
Nyasaland (ex-Hoste, ex-PF83) K587 1665 Walsh - Kaiser, Providence, USA 9/1943 6.10.1943 7/1944 to USA 4.1946
Papua (ex-Howett, ex-PF84) K588 1666 Walsh - Kaiser, Providence, USA 9/1943 10.10.1943 7/1944 to USA 5.1946
Perim (ex-Sierra Leone, ex-Phillimore, ex-PF89) K593 1671 Walsh - Kaiser, Providence, USA 10/1943 5.11.1943 2/1944 to USA 5.1946
Pitcairn (ex-Pilford, ex-PF85) K589 1667 Walsh - Kaiser, Providence, USA 9/1943 15.10.1943 7/1944 to USA 6.1946
St. Helena (ex-Pasley, ex-PF86) K590 1668 Walsh - Kaiser, Providence, USA 9/1943 20.10.1943 2/1944 to USA 4.1946
Sarawak (ex-Patton, ex-PF87) K591 1669 Walsh - Kaiser, Providence, USA 9/1943 25.10.1943 2/1944 to USA 5.1946
Seychelles (ex-Peard, ex-PF88) K592 1670 Walsh - Kaiser, Providence, USA 9/1943 30.10.1943 2/1944 to USA 6.1946
Somaliland (ex-Popham, ex-PF90) K594 1672 Walsh - Kaiser, Providence, USA

10/1943

11.11.1943 2/1944 to USA 5.1946

Tobago (ex-Hong Kong, ex-Holmes, ex-PF81)

K585 1663 Walsh - Kaiser, Providence, USA 8/1943 27.9.1943 8/1944 to USA 5.1946
Tortola (ex-Peyton, ex-PF91) K595 1673 Walsh - Kaiser, Providence, USA 10/1943 16.11.1943 5/1944 to USA 5.1946
Zanzibar (ex-Prowse, ex-PF92) K596 1674 Walsh - Kaiser, Providence, USA 10/1943 21.11.1943 6/1944 to USA 5.1946


Technical data


Displacement standard, t

1509

Displacement full, t

2238

Length, m

87.0 wl 92.6 oa

Breadth, m

11.4

Draught, m

3.86 deep load

No of shafts

2

Machinery

2 VTE, 2 boilers

Power, h. p.

5500

Max speed, kts

20

Fuel, t

oil 674

Endurance, nm(kts)

7300(11)

Armament

3 x 1 - 76/50 Mk 20, 2 x 2 - 40/56 Bofors Mk 1.2, (4 - 8) x 1 - 20/70 Oerlikon Mk 4, 1 x 24 - 178 Hedgehog ASWRL, 4 DCT, 2 DCR (64 DC)

Electronic equipmentSA, SL radars, QGA sonar
Complement

190



Graphics


sister-ship <i>Peoria</i> 1945
sister-ship Peoria 1945


Project history

US-built frigates of Tacoma class, delivered by lend-lease in 1944. They represented "River" design modified under possibilities of US yards. The basic difference consisted in all-welded hulls instead of riveted. Armament structure was similar accepted on USN destroyer escorts. In total about 100 ships were built in the USA, 21 were transferred to UK.

Modernizations

1944 - 1945, all: + (2 - 6) - 20/70 Oerlikon Mk II/IV, 4 DCT. DC stowage was increased up to 160.

1/1946: 3 x 1 - 76/50 Mk 21, 2 x 2 - 40/56 Mk 1, 6 x 1 - 20/70 Mk 10, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 8 DCT, 2 DCR (64 DC), SA, SL radars, QGA sonar

Naval service

Caicos was employed as radar picket.

Many thanks to Wolfgang Stöhr for additional information on this page.

Peoria 1945
