Weapon type destroyers (BATTLEAXE) (4(15), 1947 - 1948)





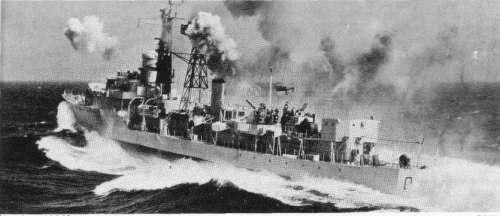

Scorpion 1947

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Battleaxe G18, 1948- D118 1832 Yarrow, Scotstoun 4/1944 12.6.1945 10/1947 BU 10.1964
Broadsword G31, 1948- D31 1833 Yarrow, Scotstoun 7/1944 5.2.1946 10/1948 BU 10.1968
Carronade   628 Scotts, Greenock 4/1944 5.4.1946 --- cancelled 4.1946
Crossbow G96, 1948- D96 4074 Thornycroft, Woolston 8/1944 20.12.1945 3/1948 BU 1.1972
Culverin   4075 Thornycroft, Woolston 4/1944 --- --- cancelled 1946
Cutlass   1834 Yarrow, Scotstoun 9/1944 20.3.1946 --- cancelled 3.1946
Dagger   1835 Yarrow, Scotstoun 3/1945 --- --- cancelled 1946
Howitzer   4076 Thornycroft, Woolston 2.1945 --- --- cancelled 1946
Longbow   4077 Thornycroft, Woolston 4.1945 --- --- cancelled 1946
Rifle   1386 Denny, Dumbarton 6.1944 --- --- cancelled 12.1945

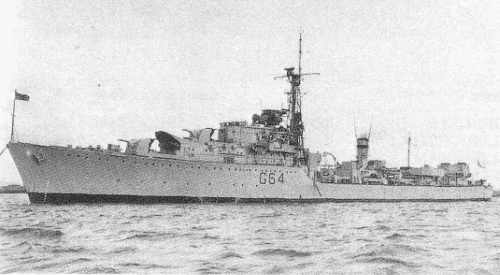

Scorpion (ex-Tomahawk, ex-Centaur) G64, 1948- D64 1933 White, Cowes 12/1944 15.8.1946 12/1947 BU 6.1971
Spear   1387 Denny, Dumbarton 9.1944 --- --- cancelled 12.1945
Sword (ex-Celt)   1934 White, Cowes 9.1945 --- --- cancelled 10.1945


Technical data


Max speed, kts, kn

34

Endurance, nm(kts) (at sped, kts) ---

5000 (15)

Max speed, kts, kn ---

34

Data variantas completed 1958-59 radar picket conversion
Displacement standard, t

1965 - 1980

2280

Displacement full, t

2825

2935

Length, m

104.1 pp 111.3 oa

104.1 pp 111.2 oa

Breadth, m

11.6

11.6

Draught, m

4.47 deep load

4.50 deep load

No of shafts

2

2

Machinery

2 sets Parsons geared steam turbines, 2 Foster Wheeler boilers

2 sets Parsons geared steam turbines, 2 Foster Wheeler boilers

Power, h. p.

40000

40000

Fuel, t

oil 620

Endurance, nm(kts)5000(20)
Armament

2 x 2 - 102/45 Mk XIX, 2 x 2 - 40/60 STAAG Mk II, 2 x 1 - 40/60 Mk VII, 2 x 5 - 533 TT, 2 x 3 - 305 Squid Mk IV ASWRL

2 x 2 - 102/45 Mk 19, 2 x 2 - 40/60 STAAG Mk 2, 2 x 1 - 40/60 Mk 9, 2 x 3 - 305 Squid Mk 4 ASWRL

Scorpion: 2 x 2 - 102/45 Mk 19, 2 x 2 - 40/60 STAAG Mk 2, 2 x 1 - 40/60 Mk 9, 1 x 3 - 305 Limbo Mk 10 ASWRL

Electronic equipment2x type 262, type 275, type 277, type 291, type 293 radars, type 170, type 174 sonars type 965 (AKE-1), 2x type 262, type 293, type 974 radars, type 170, type 174 sonars, UA-3 ECM suite
Complement

255 - 286

234



Standard scale images


<i>Crossbow </i>1963
Crossbow 1963
<i>Crossbow</i> 1964
Crossbow 1964
<i>Battleaxe</i> 1952
Battleaxe 1952
<i>Crossbow</i> 1952
Crossbow 1952


Graphics

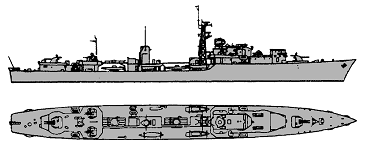

<i>Scorpion</i> 1947
Scorpion 1947

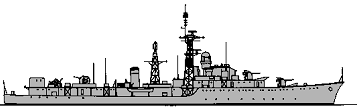

  <i>Broadsword</i> 1962
  Broadsword 1962


Project history

These ships were originally intended as fleet anti-submarine escorts with alternately arranged two boiler and two engine rooms. It was originally planned to arm these ships with 3 twin 102mm DP mounts and 50 - 150 DCs but latter and one twin mount ("B" on Battleaxe and Broadsword or "Y" on Crossbow and Scorpion) were replaced by 2 Squids. Scott's Claymore, Dirk, Grenade, Halberd, Poniard, White's Musket were never really laid down.

Modernizations

1958 - 1959, all 4 completed ships were converted to radar pickets, as given in the table.

Naval service

Battleaxe was badly damaged 1.8.1962 in collision with frigate Ursa and laid up. Rest ships were laid up in 1964 - 1966.

Many thanks to Borys Estrin for additional information on this page.
