Palmers 30-knots destroyers, 1899 order (MYRMIDON) (2, 1901 - 1902)





Syren

Ships


Name

No

Yard No

Builder

Laid down

Launched

Comp

Fate

Myrmidon

P83, D85

Palmers, Jarrow

23.10.1899

26.5.1900

5/1901

collision 26.3.1917

Syren P72, D93, D85   Palmers, Jarrow 24.11.1899 20.12.1900 2.1902 sold 9.1920


Technical data


Displacement normal, t

370

Displacement full, t

Myrmidon: 420

Syren: 440

Length, m

Myrmidon: 67.1 oa 65.5 pp

Syren: 67.0 oa 65.5 pp

Breadth, m

6.37

Draught, m

Myrmidon: 2.72

Syren: 2.84

No of shafts

2

Machinery

2 4-cyl VTE, 4 Reed boilers

Power, h. p.

6300

Max speed, kts

30

Fuel, t

coal 95

Endurance, nm(kts)

3000(10)

Armament

1 x 1 - 76/40 12pdr 12cwt QF Mk I, 5 x 1 - 57/40 6pdr Hotchkiss Mk I, 2 x 1 - 450 TT (4)

Complement

56



Graphics

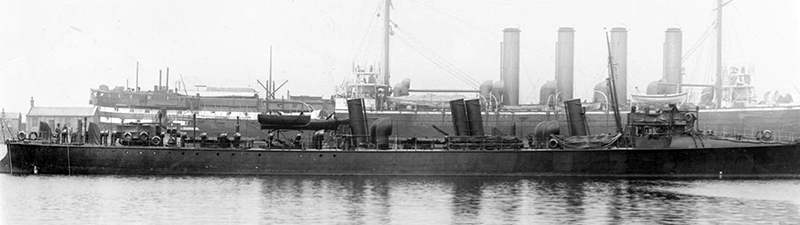

<i>Syren</i>
Syren

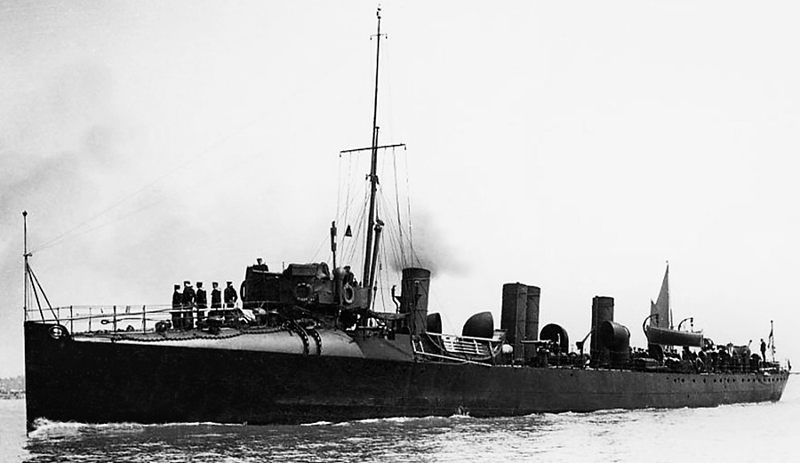

<i>Myrmidon </i>
Myrmidon


Project history

The successful trials of the first destroyers, particularly Daring, showed that higher speeds than the Admiralty had at first thought possible could be obtained, and in 1894 Thornycroft, Yarrow and Laird were all asked to submit designs for destroyers capable of 30kts, though at that stage orders could not be placed immediately. The first orders went to Thornycroft and Laird, and later other firms produced their own designs and built to them. Yarrow, however, thanks to conflicts with the Admiralty over their 27 knotter destroyers, did not receive any more destroyer orders from the Admiralty for several years, and concentrated on building for foreign navies instead.

As with the 27-knotters all the firms built to their own designs, the only common feature being the complement of 63 and the standard armament of 1 76mm and 5 57mm guns, plus 2 450mm TT. All except Thornycroft used triple expansion engines, whilst Thornycroft continued with their four cylinder compounds. Hulls were lengthened and the machinery was more powerful than the 27-knotters, but fundamentally the 30-knotters were only enlarged versions of the earlier destroyers.

As with the 27-knotters the high trial speeds were never achieved in service, or even in subsequent trials. Sea speed was more often around the 25kts mark, if that. The light structure of these destroyers caused some trouble with leakage and fractures, though in fact it stood up remarkably well to the strains of wartime service between 1914 and 1918 when these by then elderly vessels were mainly used for coastal patrol work. Many had their funnels raised in an attempt to minimize smoke and cinders at deck level.

Though quite a few of these vessels were delayed in their entrance into the service by difficulties in reaching the contract speed, more delay was caused with the later groups of vessels by the severe labour troubles in the late 1890s in the shipbuilding trades.

Palmer boats were generally considered as perhaps the best all-round vessels of the 30-knotters. Certainly their machinery seems to have had the best reputation amongst engineers.

This pair was slightly improved versions of earlier Palmer boats.

Modernizations

1916-1917, Syren: + 2 DCR

Naval service

Myrmidon was sunk in collision with s/s Hamborn in English Channel 26.3.1917. Syren had been wrecked off Berehaven in May 1905 but was salved and returned to service in 1906.
