GRASSHOPPER torpedo gun boats (3, 1888)





Sandfly

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Grasshopper     Sheerness DYd 27.4.1886 30.8.1887 7.1888 sold 7.1905
Sandfly     Devonport DYd 19.4.1886 20.9.1887 7.1888 sold 3.1905
Spider     Devonport DYd 9.6.1886 17.10.1887 12.1888 sold 5.1903


Technical data


Displacement normal, t526
Displacement full, t



Length, m

61.0 pp

Breadth, m

7.01

Draught, m

3.15

No of shafts

2

Machinery

2 3-cyl VTE, locomotive boilers

Power, h. p.

natural draught: 1600, forced draught: 2700

Max speed, kts

natural draught: 16.7, forced draught: 19.2

Fuel, t

coal 100

Endurance, nm(kts)2400(10)
Armament

1 x 1 - 102/27 BL Mk II/III/IV/V/VI, 6 x 1 - 47/40 3pdr Hotchkiss Mk I, 2 - 356 TT (1 bow, 1 stern, aw), 2 x 1 - 356 TT (8 at all)

Complement

66



Standard scale images

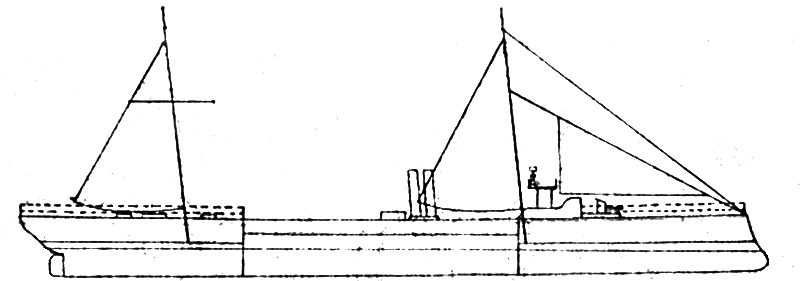

<i>Grasshopper</i> 1888
Grasshopper 1888


Graphics

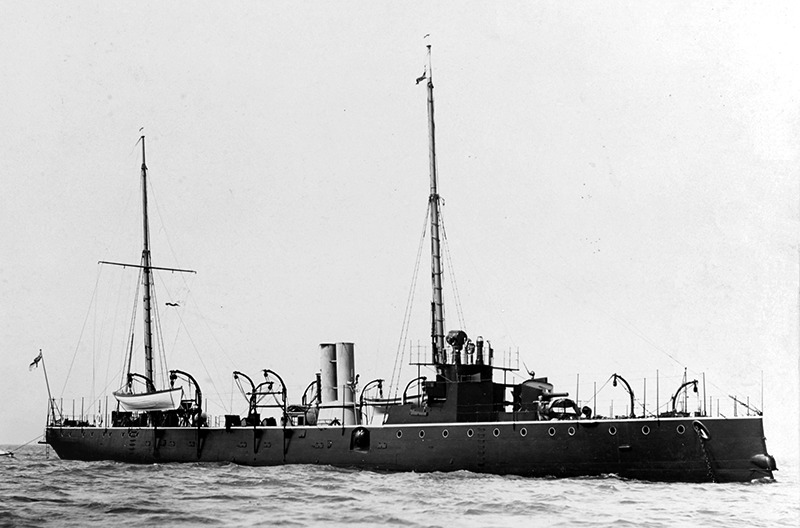

<i>Grasshopper</i>
Grasshopper
<i> Sandfly</i>
Sandfly


Project history

Very similar to Rattlesnake, but lighter, these vessels were engined by Maudslay. Their performance was not as good as their near-sister however.

Modernizations

None.

Naval service

No significant events.
