DEVONSHIRE 1st rank armoured cruisers (1905)

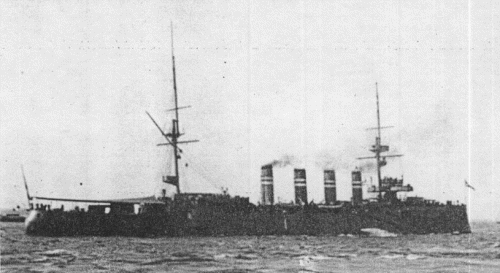

Hampshire 1906

Name No Yard No Builder Laid down Launched Comp Fate
Hampshire 50 734 Armstrong, Elswick 1/9/1902 24/9/1903 15/7/1905 sunk 5/6/1916
Carnarvon 30, P3A, P80 480 Beardmore, Dalmuir 1/10/1902 7/10/1903 29/5/1905 TS 1919, sold 11/1921
Antrim 09, 07, N58 363 John Brown, Clydebank 27/8/1902 8/10/1903 23/6/1905 trials ship 3/1920, TS 1922, sold 12/1922
Roxburgh 86, 3A, N34 317 London & Glasgow, Glasgow 13/6/1902 19/1/1904 5/9/1905 trials ship 6/1919, sold 11/1921
Argyll 80 380 Scott, Greenock 1/9/1902 3/3/1904 12/1905 wrecked 28/10/1915
Devonshire 38, 53, N19   Chatham DYd 25/3/1902 30/4/1904 24/8/1905 sold 5/1921



Displacement normal, t

10850

Displacement full, t



Length, m

137.2 pp 144.3 oa

Breadth, m

20.9

Draught, m

7.32

No of shafts

2

Machinery

Hampshire, Antrim: 4-cyl VTE, 17 Yarrow and 6 cylindrical boilers

Carnarvon: 4-cyl VTE, 17 Niclausse and 6 cylindrical boilers

Roxburgh: 4-cyl VTE, 17 Durr and 6 cylindrical boilers

Argyll: 4-cyl VTE, 16 Babcock and 6 cylindrical boilers

Devonshire: 4-cyl VTE, 15 Niclausse and 6 cylindrical boilers

Power, h. p.

21000

Max speed, kts

22

Fuel, t

coal 1950

Endurance, nm(kts)

4900(13)

Armour, mm belt: 152 - 51, bulkhead: 127, decks: 51 - 19, turrets: 127, barbettes: 152, casemates: 152 - 51, ammunition tubes: 76, CT: 305

Armament

4 x 1 - 190/45 BL Mk I, 6 x 1 - 152/45 BL Mk VII, 2 x 1 - 76/40 12pdr 12cwt QF Mk I, 18 x 1 - 47/50 3pdr Vickers Mk I, 2 - 450 TT (sub, beam)

Complement

655

Ship project history: Provided under the 1901/02 Programme, these ships were an attempt to improve on the Monomouth design without an excessive increase in size. Both armour and armament were improved but the increase in displacement was restricted to 1000t by retaining the machinery power of the Monmouth and accepting a 0.7kt loss in speed. As designed they carried the same armament as the previous class except that single 190mm turrets were mounted in place of the twin 152mm, but while under construction two more 190mm turrets, mounted abreast the foremast on the upper deck, were substituted for the four forward 152mm and their double-storey casemates.
    The class was contemporary with the King Edward VII class battleships and like them carried mixed boiler arrangements in order to give the many watertube boiler designs then available a practical test. These boilers were distributed between the three forward boiler rooms while the after boiler room in all six vessels was fitted with 6 cylindrical boilers. On trials all exceeded their designed power and all except Argyll exceeded 23kts but in the long term they did not prove to be good steamers.

Ship protection: The main 152mm belt was 75.0m long by 3.2m deep amidships and was continued to the stem by 51mm thick side armour. The protective deck was 64mm thick abaft the armoured bulkhead and 19mm for the length of the belt, while the main deck was 32mm for the length of the belt.

Modernizations: None.

Naval service: Antrim was paid off to reserve in 1919 but refitted as W/T and Asdic trials ship, recommissioning in March 1920 (she carried out the first sea trials of Asdic). She was converted to cadets` TS in 1922. Argyll wrecked on the Bell Rock off Dundee 28/10/1915.  Carnarvon served as cadets` TS from 1919 until she was put on sale list in May 1920. Hampshire struck a mine off the Shetlands 5/6/1916 and foundered with the lost of all but 12 men. Roxburgh was torpedoed by German submarine U39 20/6/1915 and was under repair till April 1916. In 1919 she was converted to W/T trials ship and served in this role till she was paid off in February 1920.

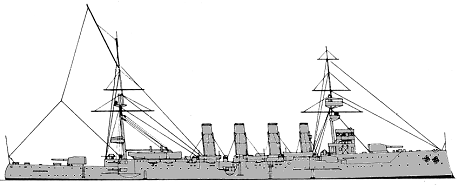

Antrim as built
