"LCU Mk10"-type utility landing craft (L1001) (1999 - 2005)

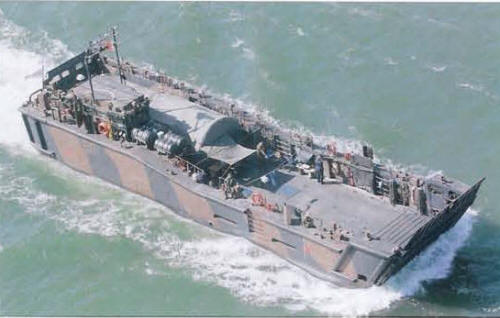

LCU Mk 10 2008

Ships


Name No Yard No Builder Laid down Launched Comp. Fate
LCU01 L1001, 2005- 9730   Ailsa Troon SB, Clyde     1999 in service (2019)
LCU02 L1002, 2005- 9731   Ailsa Troon SB, Clyde     1999 in service (2019)
LCU03 L1003, 2005- 9732   BAE Systems, Govan     2003 in service (2019)
LCU04 L1004, 2005- 9733   BAE Systems, Govan     2003 in service (2019)
LCU05 L1005, 2005- 9734   BAE Systems, Govan     2004 in service (2019)
LCU06 L1006, 2005- 9735   BAE Systems, Govan     2004 in service (2019)
LCU07 L1007, 2005- 9736   BAE Systems, Govan     2004 in service (2019)
LCU08 L1008, 2005- 9737   BAE Systems, Govan     2004 in service (2019)
LCU09 L1009, 2005- 9738   BAE Systems, Govan     2005 in service (2019)
LCU10 L1010, 2005- 9739   BAE Systems, Govan     2005 in service (2019)


Technical data


Displacement standard, t170
Displacement full, t

240

Length, m

29.8

Breadth, m7.40
Draught, m

1.50

No of shafts2 Schottel waterjets
Machinery

2 MAN D2840LE diesels

Power, h. p.1090
Max speed, kts

10 (loaded)

12 (light)

Fuel, t

diesel oil

Endurance, nm(kts)600(12)
Armament

2 x 1 - 7.6/90

Military load

1 tank or 2 heavy trucks or 120 troops

Electronic equipmentnav. radar
Complement7


Graphics


LCU Mk 10 2008
LCU Mk 10 2008


Ship project history


Ordered for Albion class LPDs. Have 'drive-through' configuration, with ramps fore and aft and pilothouse shifted to starboard.

Modernizations


None.

Naval service


No significant events.
