AL GAFFA diving tender (1987)

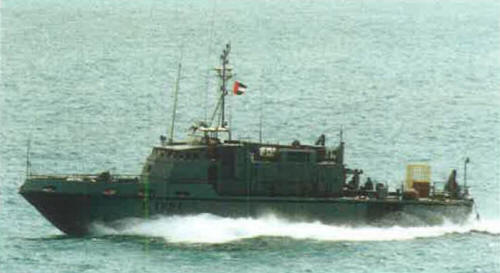

Al Gaffa 1997
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| الجافا [Al Gaffa] | D1051 | Cresitalia, Ameglia, Italy | 7/1987 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 100 |
| Length, m | 31.4 |
| Breadth, m | 6.90 |
| Draught, m | 1.20 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V396 TB93 diesels |
| Power, h. p. | 3950 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 430(18) |
| Armament | decompression chamber |
| Electronic equipment | radar |
| Complement | 6 + 6 divers |
Graphics
Al Gaffa 1997
Project history
Crestitalia MV100 design, modified Alcide Pedretti class. Used mostly for mine clearance.
Modernizations
None.
Naval service
No significant events.
