AL SHAHEEN patrol boats (1975)
Al Shaheen 1975
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
الشاهين [Al Shaheen] ألقاب [Al Aqab] |
Cheverton, Cowes, UK: Al Shaheen, Al Aqab |
1975: AL Shaheen, Al Aqab |
none |
none |
early 1990s: Al Shaheen, Al Aqab |
Technical data
| Displacement standard, t | 20 |
|---|---|
| Displacement full, t | |
| Length, m | 15.2 |
| Breadth, m | 4.30 |
| Draught, m | 1.40 |
| No of shafts | 2 |
| Machinery | 2 General Motors diesels |
| Power, h. p. | 850 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(20) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 8 |
Graphics

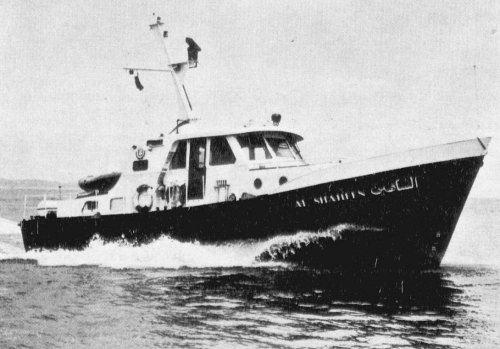

Al Shaheen 1975
Project history
Sharjah Police, in 1977 transferred to UAE Coast Guard. GRP hull.
Modernizations
None.
Naval service
No significant events.
