No501 patrol boats (1993)
No 503 1993
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
501 - 503, 2010- CG501 - 503 |
Baglietto, Varazze, Italy: 501-503 | 1993: 501-503 |
none |
none |
in service (2020): CG501-503 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 22 |
| Length, m | 18.1 |
| Breadth, m | 4.30 |
| Draught, m | 0.70 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V183 TE92 diesels |
| Power, h. p. | |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Decca radar |
| Complement | 6 |
Graphics

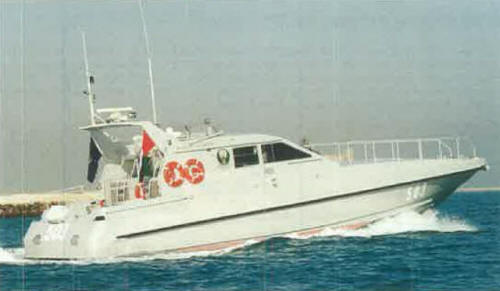

No 503 1993
Project history
Coast Guard. Baglietto 59ft design.
Modernizations
None.
Naval service
No significant events.
