No21 patrol boats (1975)

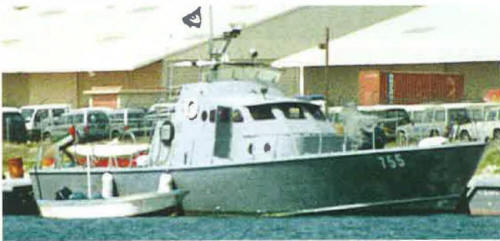

No 755 1997
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
21 - 25, 2001- 753 - 757, 2010- GC103 - 107 |
Camcraft, New Orleans, USA: 21-25 |
1975: 21-25 |
none |
none |
in service (2020): GC103-107 |
Technical data
| Displacement standard, t | 70 |
|---|---|
| Displacement full, t | |
| Length, m | 23.4 |
| Breadth, m | 5.50 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 General Motors 12V71TA diesels |
| Power, h. p. | 1400 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(25) |
| Armament | 2 x 1 - 20/70 Mk 10 |
| Electronic equipment | Decca radar |
| Complement | 8 |
Graphics
No 755 1997
Project history
Abu Dhabi Police, in 1977 transferred to UAE Coast Guard. Camcraft P-77A design.
Modernizations
late 1990s, all: - 2 x 1 - 20/70; + 1 x 1 - 20/90 GAM-B01
Naval service
No significant events.
