CG1801 patrol boats (2010-2016)
CG1821 2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CG1801 - 1834 |
Yonca-Onuk, Tuzla, Turkey: CG1801-1812 ADSB, Massafah, Abu Dhabi: CG1813-1834 |
2010-2016: CG1801-1834 |
none |
none |
in service (2020): CG1801-1834 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 22 |
| Length, m | 17.8 |
| Breadth, m | 4.19 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 MTU 8V2000 M93 diesels |
| Power, h. p. | 2400 |
| Max speed, kts | 60 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(35) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Garmin radar |
| Complement | 4 |
Graphics

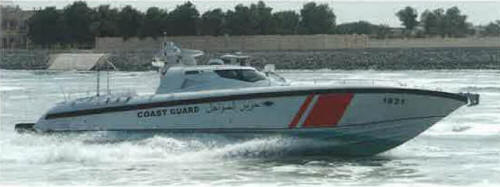

CG1821 2013
Project history
Coast Guard. Fast interceptors of MRTP16 design, 'Ghantot' class. Ordered in 2009. Some have names (as example, CG1801 Sahel 4 and CG1812 Hashan 1)
Modernizations
None.
Naval service
One launch from built to Coast Guard serves under Naval flag.
