TE MATAILI II patrol craft (2019)
sister-ship Ted Diro (Navy of Papua New Guinea) 2019
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Te Mataili II | 802 | Austal, Henderson, Australia | 26.11.2018 | 5.4.2019 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | |
| Length, m | 39.6 |
| Breadth, m | 8.00 |
| Draught, m | 2.50 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516C diesels |
| Power, h. p. | 5440 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 23 |
Graphics

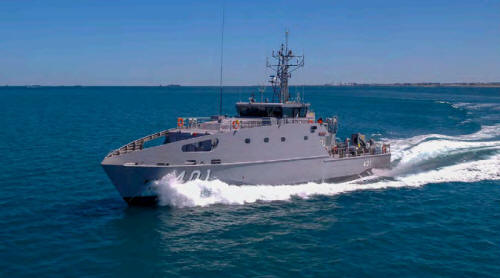

sister-ship Ted Diro (Navy of Papua New Guinea) 2019
Project history
Australian PPBR project, replacement for ASI315 boats.
Modernizations
None.
Naval service
No significant events.
