TE MATAILI patrol boat (1994)

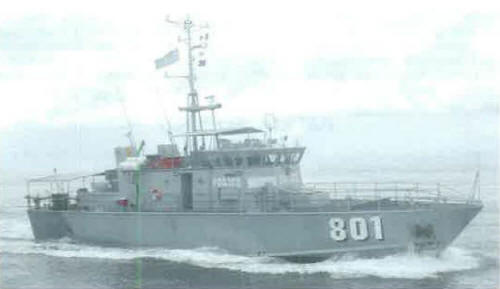

Te Mataili 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Te Mataili | 801 | ASI, Jervis Bay, Australia | 8.10.1994 | stricken 4.2019 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 165 |
| Length, m | 28.6 pp 31.5 oa |
| Breadth, m | 8.10 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516 diesels |
| Power, h. p. | 2820 |
| Max speed, kts | 21 |
| Fuel, t | diesel oil 28 |
| Endurance, nm(kts) | 2500(12) |
| Armament | 1 x 1 - 12.7/90 (fitted for) |
| Electronic equipment | Furuno 1011 radar |
| Complement | 17 |
Graphics
Te Mataili 2011
Project history
ASI315, or 'Pacific Patrol Boat' design, built as grant-aid by Australia. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
