EDİNCİK minesweepers (1972-1973/1998-1999)
Edremit 2007
Ships
Name |
No |
Yard No | Builder |
Laid down |
Launched |
Comp |
Fate |
|---|---|---|---|---|---|---|---|
| Edincik (ex-Calliope) | M260 | CMN, Cherbourg, France | 4.4.1970 | 20.10.1971 | 28.9.1972 // 17.7.1998 | in service (2019) | |
| Edremit (ex-Circé) | M261 | CMN, Cherbourg, France | 30.1.1969 | 15.12.1970 | 18.5.1972 // 28.8.1998 | in service (2019) | |
| Enez (ex-Cérès) | M262 | CMN, Cherbourg, France | 2.2.1971 | 10.8.1972 | 8.3.1973 // 30.10.1998 | in service (2019) | |
| Erdek (ex-Cybèle) | M263 | CMN, Cherbourg, France | 15.9.1970 | 2.3.1972 | 28.9.1972 // 4.12.1998 | in service (2019) | |
| Erdemli (ex-Clio) | M264 | CMN, Cherbourg, France | 4.9.1969 | 10.6.1971 | 18.5.1972 // 15.1.1999 | in service (2019) |
Technical data
| Displacement standard, t | 423 |
|---|---|
| Displacement full, t | 508 |
| Length, m | 46.5 pp 50.9 oa |
| Breadth, m | 9.30 |
| Draught, m | 3.60 max |
| No of shafts | 1 |
| Machinery | 1 MTU diesel / 2 electric propulsors |
| Power, h. p. | 1800 / 520 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | 1 x 1 - 20/90 MIT-20F2, 2 PAP-Plus USV, 6 mineclearing divers |
| Electronic equipment | DRBN-34A radar, DUBM-20B sonar, Minetac CCS |
| Complement | 50 |
Standard scale images
Edincik 2010
Graphics

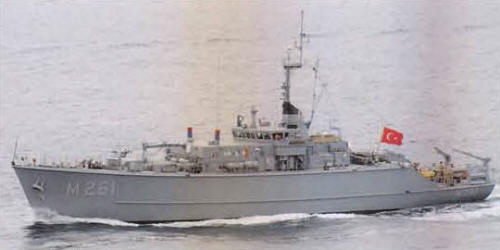

Edremit 2007
Project history
Former French Circé class minesweepers. Modernised before transfer with new minehunting drones and data system.
Modernizations
None.
Naval service
No significant events.
