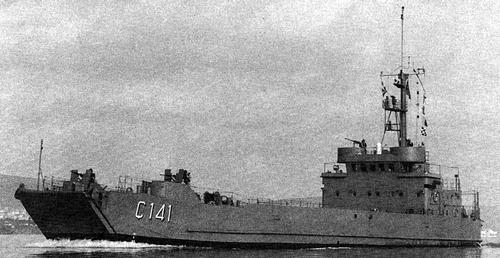

Ç141 1986

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
	Ç139		Taşkizak NSY, Istanbul		8/1984	1984	stricken 2014
	Ç140		Taşkizak NSY, Istanbul		8/1984	1984	in service (2019)
	Ç141		Taşkizak NSY, Istanbul		9/1984	1985	in service (2019)
	Ç142		Taşkizak NSY, Istanbul		25.7.1985	1985	in service (2019)
	Ç143		Taşkizak NSY, Istanbul		25.7.1985	1985	in service (2019)
	Ç144		Taşkizak NSY, Istanbul		25.7.1985	1985	in service (2019)
	Ç145		Taşkizak NSY, Istanbul		21.7.1989	1989	in service (2019)
	Ç146		Taşkizak NSY, Istanbul		21.7.1989	1989	in service (2019)
	Ç147		Taşkizak NSY, Istanbul		21.7.1989	1989	in service (2019)
	Ç148		Taşkizak NSY, Istanbul		21.7.1990	1990	in service (2019)
	Ç149		Taşkizak NSY, Istanbul		21.7.1990	1990	in service (2019)
	Ç150		Taşkizak NSY, Istanbul		7/1991	1991	in service (2019)

Technical data

Displacement standard, t	260
Displacement full, t	600
Length, m	60.2
Breadth, m	11.6
Draught, m	1.25 aft
No of shafts	2
Machinery	2 MTU 8V396 TE diesels
Power, h. p.	1240
Max speed, kts	10
Fuel, t	diesel oil
Endurance, nm(kts)	1100(8)
Armament	2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90
Military load	6 medium tanks, 100 troops
Electronic equipment	Decca TM1226 radar
Complement	17

Standard scale images

Graphics

Project history

Development of Ç107 class with greater length and larger superstructure.

Modernizations

None.

Naval service

Ç136 was lost in storm 31.1.1985.
