Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Bayraktar	L402		ADIK, Tuzla		3.10.2015	21.4.2017	in service (2019)
Sancaktar	L403		ADIK, Tuzla		16.7.2016	7.4.2018	in service (2019)

Technical data

Displacement standard, t	5250
Displacement full, t	7250
Length, m	135.00 pp 138.8 oa
Breadth, m	19.6
Draught, m	4.80
No of shafts	2
Machinery	4 MTU 16V4000 M73L diesels
Power, h. p.	15450
Max speed, kts	18
Fuel, t	diesel oil
Endurance, nm(kts)	5000(15)
Armament	2 x 2 - 40/70 Bofors Compact Twin 40, 2 x 6 - 20/76 Phalanx Mk 15, 2 x 1 - 12.7/90, helicopter deck
Military load	4 LCVP or LCM, 350 troops, 15 tanks, 1200 t cargo
Electronic equipment	SMART-S Mk 2, nav. radars, 2x Aselflir 300D e/o systems, ARES-2N ECM suite, Genesis CCS
Complement	118

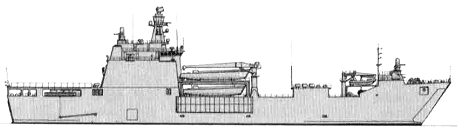

Standard scale images

Project history

Ordered in 2011. Primarily intended for amphibious assault operations with secondary humanitarian assistance, medical, and disaster relief roles. Draft has been listed as less than 2m forward, less than 5m aft at full load. Monohull design with steel construction. Able to transport 1180t of vehicles or cargo without performance penalties at a top speed of 18kts. Capable of operating without restriction through Sea State 5; operational restrictions at Sea State 6 or higher. Able to conduct helicopter operations in conditions up to and including Sea State 4.

Modernizations

None.

Naval service

No significant events.
