ALP ARSLAN destroyers (1941-1942/1959)
Kılıç Ali Paşa 1960
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Alp Arslan (ex-Milne) | D348 | Scotts, Greenock, UK | 1/1940 | 30.12.1941 | 8/1942 // 27.4.1959 | discarded 1970 | |
| Mareşal Fevzi Çakmak (ex-Marne) | D349 | Vickers-Armstrong, Tyne, UK | 10/1939 | 30.10.1940 | 12/1941 // 26.3.1959 | discarded 1970 | |
| Kılıç Ali Paşa (ex-Matchless) | D350 | A. Stephens, Linthouse, UK | 9/1940 | 4.9.1941 | 2/1942 // 16.7.1959 | discarded 8.1971 | |
| Piyale Paşa (ex-Meteor) | D351 | A. Stephens, Linthouse, UK | 9/1940 | 3.11.1941 | 8/1942 // 29.6.1959 | discarded 1970 |
Technical data
| Displacement standard, t | 1935 |
|---|---|
| Displacement full, t | 2810 - 2840 |
| Length, m | 105.3 pp 110.5 oa |
| Breadth, m | 11.2 |
| Draught, m | 4.52 deep load |
| No of shafts | 2 |
| Machinery | 2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers |
| Power, h. p. | 48000 |
| Max speed, kts | 36 |
| Fuel, t | oil 537 |
| Endurance, nm(kts) | 5500(15) |
| Armament | 3 x 2 - 120/50 Mk 20, 1 x 2 - 40/60 RP.50 Mk 5, 4 x 1 - 40/60 Mk 3, 1 x 4 - 533 TT, 1 x 3 - 305 Squid Mk 4 ASWRL |
| Electronic equipment | type 273, type 285, type 291, type 292 radars, type 128 sonar |
| Complement | 226 |
Standard scale images

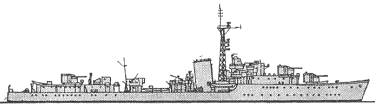

Alp Arslan 1965
Graphics

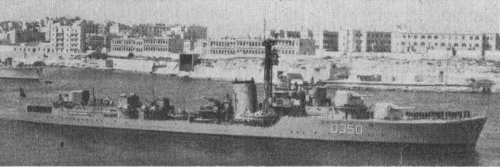

Kılıç Ali Paşa 1960
Project history
Former RN 'M' class destroyers, transferred to Turkey after refitting and modernization. Piyale Paşa was fitted as flotilla leader.
Modernizations
None.
Naval service
No significant events.
