AKHİSAR torpedo boats (1904)
Akhisar 1904
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Akhisar | Ansaldo, Sestri Ponente, Italy | 1904 | 25.4.1904 | 6/1904 | decommissioned 1930, BU 1935 | ||
| Alpagot | Ansaldo, Sestri Ponente, Italy | 1904 | 30.4.1904 | 6/1904 | sunk 30.9.1912 |
Technical data
| Displacement normal, t | 165 |
|---|---|
| Displacement full, t | |
| Length, m | 51.0 |
| Breadth, m | 5.70 |
| Draught, m | 1.40 |
| No of shafts | 2 |
| Machinery | 2 VTE, 2 locomotive boilers |
| Power, h. p. | 2400 |
| Max speed, kts | 24 |
| Fuel, t | coal 60 |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 37/20 Hotchkiss, 2 x 1 - 450 TT (4) |
| Complement | 30 |
Standard scale images

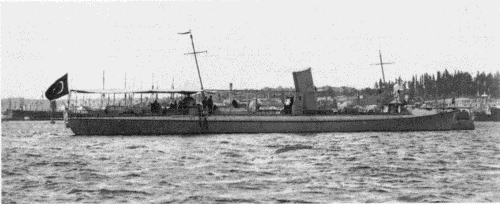

Akhisar 1906
Graphics
Akhisar 1904
Project history
Usual torpedo boats of Ansaldo / Armstrong design. Maximum speed of Akhissar in 1915 did not exceed 14kts.
Modernizations
1915, Akhisar: - 1 x 1 - 450 TT; + 1 x 1 - 47/42 SK L/45 C/99
Naval service
Alpagot was sunk by Italian destroyers Artigliere and Corazziere 30.9.1912 at Reshadiye (Ionian Sea).
