SG50 patrol boats (1990-1993)





SG58 2007

Ships


Names Builders Commissioned Losses Transfers Discarding

SG50-59

SG102, 103

Taşkizak NSY, Istanbul: SG50-55

Gölçük NSY: SG56-59, 102, 103

1990: SG102

1991: SG103

1992: SG50-52

1993: SG53-59

None

None

2012-15: SG50-53, 55-57, 59

in service (2019): SG54, 58, 102, 103


Technical data


Displacement standard, t25
Displacement full, t

29
Length, m

14.6
Breadth, m

3.50
Draught, m

1.10
No of shafts

2
Machinery

2 diesels
Power, h. p.

700
Max speed, kts

18
Fuel, t

diesel oil
Endurance, nm(kts)
Armament

1 x 1 - 12.7/90
Electronic equipment

radar
Complement

6


Graphics

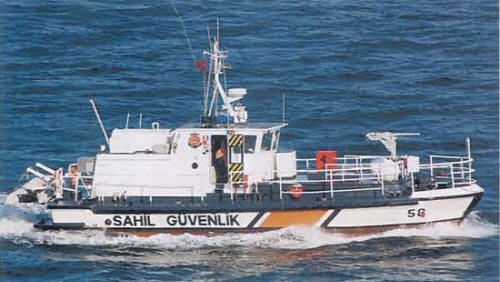

<i>SG58 </i>2007
SG58 2007


Project history

Small patrol boats. SG102 and 103 were built for North Cyprus.

Modernizations

1992, SG102, 103: - 1 x 1 - 12.7/90; + 1 x 1 - 20/70 Mk 10

Naval service

No significant events.
