SG19 patrol boats (2006-2017)
SG19 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
SG19-36 |
Yonca-Onuk, Tuzla: SG19-36 |
2006: SG19 2008: SG20 2009: SG21 2014-2017: SG22-36 |
None |
None |
in service (2019): SG19-36 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 21 |
| Length, m | 22.5 |
| Breadth, m | 4.75 |
| Draught, m | 1.35 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V183 TE93 |
| Power, h. p. | 2300 |
| Max speed, kts | 60 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 350(35) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 5 |
Graphics

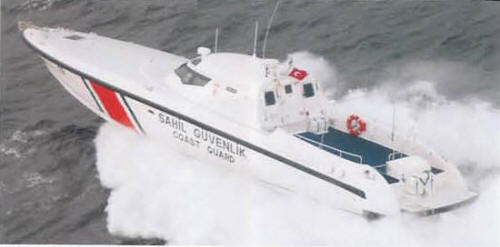

SG19 2008
Project history
Kaan 20 (MRTP20) class interceptors.
Modernizations
None.
Naval service
One craft was badly damaged in collision with cargo vessel in Bosphorus 17.8.2016.
