SG101 patrol boats (2001-2004)
SG107 2007
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
SG101 - 109 |
Yonca-Onuk, Tuzla: SG101 - 109 |
2001: SG101-103 2002: SG104, 105 2003: SG106-108 2004: SG109 |
None |
None |
in service (2019): SG101-109 |
Technical data
| Displacement standard, t | 75 |
|---|---|
| Displacement full, t | 95 |
| Length, m | 29.0 pp 31.6 oa |
| Breadth, m | 6.70 |
| Draught, m | 1.40 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 16V4000 M90 diesels |
| Power, h. p. | 7400 |
| Max speed, kts | 49 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 650(24) |
| Armament | 1 x 1 - 20/70 Mk 10 (can be fitted), 2 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 13 |
Graphics

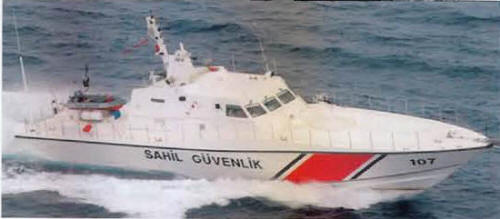

SG107 2007
Project history
Kaan 29 (MRTP29) or Onur class. Composite hull with replaceable armor plating.
Modernizations
None.
Naval service
No significant events.
