FIGHTING SHIPS OF THE WORLD
TRINIDAD AND TOBAGO
COAST GUARD
COROZAL POINT patrol boats (1962-1967/1999-2001)

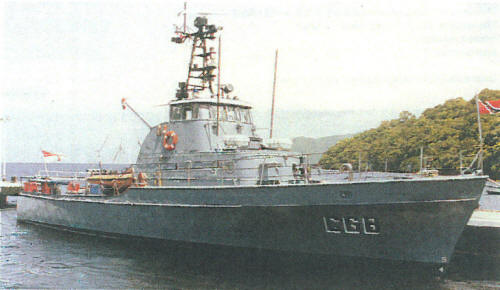

Crown Point 1999

Ships


Names Builders Completed Losses Transfers Discarding

CG7 Corozal Point (ex-Point Bennett)

CG8 Crown Point (ex-Point Heyer)

CG9 Galera Point (ex-Point Bonita)

CG10 Bacolet Point (ex-Point Highland, ex-WPB82333)

Martinac, Tacoma, USA: CG7, 9

USCG Yard, Curtis Bay, USA: CG8, 10

1966 // 1999: CG7

1967 // 1999: CG8

1966 // 2000: CG9

1962 // 2001: CG10

none

none

2009-2010: CG7-10


Technical data


Displacement standard, t64
Displacement full, t69
Length, m

25.3
Breadth, m5.23
Draught, m1.95
No of shafts

2
Machinery

2 Caterpillar 3412 diesels
Power, h. p.1480
Max speed, kts

23.7
Fuel, t

diesel oil 5.7
Endurance, nm(kts)1500(8)
Armament

2 x 1 - 12.7/90
Electronic equipmentSPS-73 radar
Complement8


Standard scale images


<i>Corozal Point </i>2000
Corozal Point 2000


Graphics


<i>Crown Point </i>1999
Crown Point 1999


Project history

Former USCG Point-class cutters, transferred by donation.

Modernizations

None.
