TOGO
COASTAL FORCES
KARA patrol boats (1976)





Kara 2010

Ships


Names Builders Completed Losses Transfers Discarding

P761 Kara

P762 Mono

CN de l'Estérel, Cannes, France: P761, 762

1976: P761, 762

none

none

2014: P762

in service (2020): P761



Technical data


Displacement standard, t
Displacement full, t80
Length, m

32.0

Breadth, m5.80
Draught, m1.60
No of shafts

2

Machinery

2 MTU 12V493 TY60 diesels

Power, h. p.2700
Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)1500(15)
Armament

1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10

Electronic equipmentFuruno radar
Complement18


Graphics

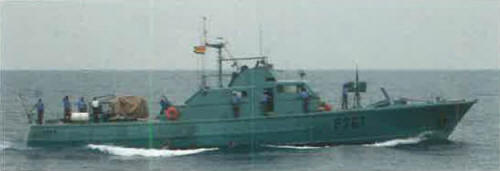

<i>Kara </i>2010
Kara 2010


Project history

Wooden construction.

Modernizations

None.
