VILUN submarines (1937-1938)

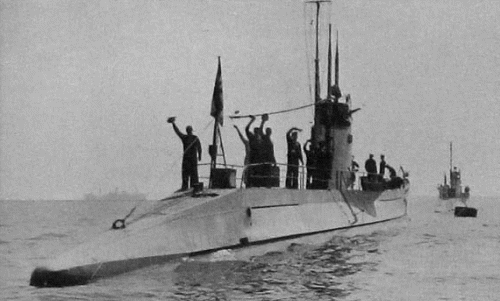

Blajunbol 1938

Ships


Name No Yard No Builder Laid down Launched Comp Fate
วิรุณ [Vilun]     Mitsubishi, Kobe, Japan 4.1936 24.12.1936 9.1937 stricken 11.1951
มัจฉาณุ [Machanu]     Mitsubishi, Kobe, Japan 4.1936 24.12.1936 9.1937 stricken 11.1951
สินสมุทร [Sinsamudar]     Mitsubishi, Kobe, Japan 10.1936 14.5.1937 1938 stricken 11.1951
พลายชุมพล [Blajunbol]     Mitsubishi, Kobe, Japan 10.1936 14.5.1937 1938 stricken 11.1951


Technical data


Displacement standard, t
Displacement normal, t

370 / 430

Length, m

51.0

Breadth, m

4.11

Draught, m

3.65

No of shafts

2

Machinery

2 diesels / 2 electric motors

Power, h. p.

1000 / 540

Max speed, kts

14.5 / 8

Fuel, t

diesel oil 27

Endurance, nm(kts)3000(10) /
Armament

1 x 1 - 76/40 11-shiki, 1 x 1 - 13.2/76, 5 - 533 TT (4 bow, 1 stern, 7)

Electronic equipmentpresumably hydrophone
Complement

24

Diving depth operational, m


Standard scale images


<i>Vilun</i> 1937
Vilun 1937


Graphics


<i>Blajunbol</i> 1938
Blajunbol 1938


Project history

Small coastal submarines with strong torpedo armament, built in Japan under the 1935 programme. They were designed by Mitsubishi on the basis of Schneider-Laubeuf design. Vilun, Sinsamudar and Blajunbol in some sources are written as Wirun, Sinsamut and Plai Chumpol. The 1938 programme included building of 4 additional boats of this class, however subsequently they were cancelled, and new submarines were never laid down.

Modernizations

None.

Naval service

No significant events.
