SRI MONTHON gunboat (1908)

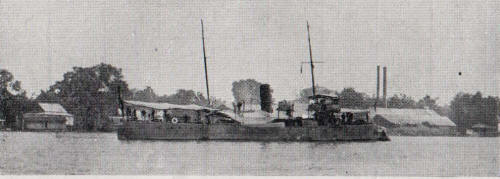

Sri Monthon 1921
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ปริมณฑล [Sri Monthon] | Thornycroft, Southampton, UK | 1907 | 1908 | stricken 7.1935 |
Technical data
| Displacement normal, t | 225 |
|---|---|
| Displacement full, t | |
| Length, m | 39.6 pp 41.8 oa |
| Breadth, m | 5.50 |
| Draught, m | 2.00 |
| No of shafts | 2 |
| Machinery | 2 VTE, 1 Thornycroft boiler |
| Power, h. p. | 7500 |
| Max speed, kts | 14.5 |
| Fuel, t | coal 66 |
| Endurance, nm(kts) |
|
| Armament | 2 x 1 - 57/40 Hotchkiss |
| Complement | 34 |
Standard scale images
Sri Monthon 1908
Graphics
Sri Monthon 1921
Project history
Gunboat for customs and board guard services.
Modernizations
None.
Naval service
No significant events.
