THALANG mine countermeasures support ship (1980)

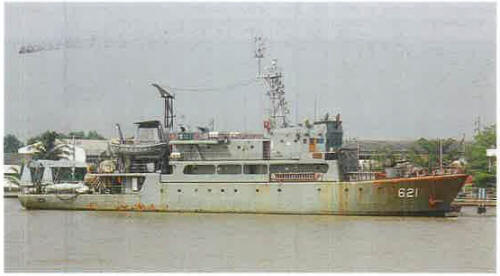

Thalang 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ถลาง [Thalang] | 1, 1992- 621 | Naval DYd, Bangkok | 25.6.1980 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 1000 |
| Length, m | 55.7 |
| Breadth, m | 10.0 |
| Draught, m | 3.10 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 1310 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90, mines |
| Electronic equipment | Decca TM1226 radar |
| Complement | 77 |
Graphics
Thalang 2001
Project history
Design of Ferrostaal, West Germany. Has two 3t cranes on the stern and carries 4 sets of spare mine-countermeasures equipment for minesweepers. Can also use mechanical minesweeping gear.
Modernizations
None.
Naval service
No significant events.
