M11 minesweeping boats (1994-1998)
M11 1995
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ท.11 - 17 [M11-17] |
Naval DYd, Bangkok: M11-17 |
1994: M11, 12 1998: M13-17 |
None |
None |
in service (2019): M11-17 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 21 |
| Length, m | 15.3 |
| Breadth, m | 4.01 |
| Draught, m | 1.31 |
| No of shafts | 1 |
| Machinery | 1 Gray Marine 64HN9 diesel |
| Power, h. p. | 165 |
| Max speed, kts | 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 150(8) |
| Armament | 2 x 1 - 7.6/92, mechanical, magnetic sweeping gear |
| Electronic equipment | none |
| Complement | 6 |
Graphics

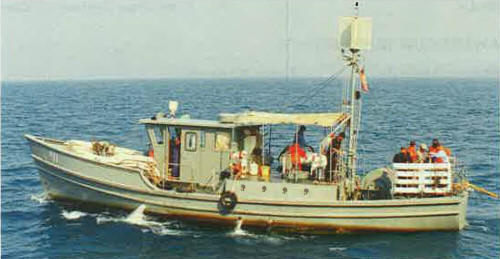

M11 1995
Project history
Wooden-hulled. Version of US 50ft boats but with deck over hull fwd and pilothouse.
Modernizations
None.
Naval service
No significant events.
