LATYA minehunters/minesweepers (1999)

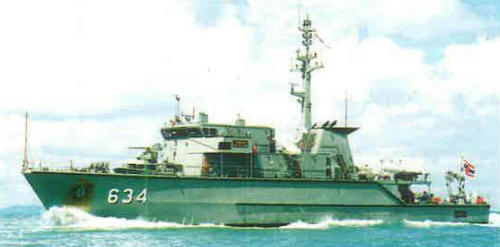

Thadin Daeng 2004

Ships


Name No Yard No Builder Laid down Launched Comm Fate
ลาดหญ้า [Latya] 633   Intermarine, Sarzana, Italy 18.11.1996 30.3.1998 18.6.1999 in service (2019)
ท่าดินแดง [Thadin Daeng] 634   Intermarine, Sarzana, Italy 18.9.1997 31.10.1998 18.12.1999 in service (2019)


Technical data


Displacement standard, t590
Displacement full, t

650

Length, m

48.1 pp 52.5 oa

Breadth, m

9.87

Draught, m

2.75

No of shafts

2 Voith-Schneider

Machinery

2 MTU 8V396 TE74K diesels

Power, h. p.

1600

Max speed, kts

14

Fuel, t

diesel oil

Endurance, nm(kts)2000(12)
Armament

1 x 1 - 30/80 DS-30B, 2 Pluto-Plus USV, Oropesa Mk 4 mechanical, Mini-Dyad, MS106 magnetic/acoustic minesweeping gear

Electronic equipmentKAE 9600M radar, DSQS-11M sonar
Complement47


Standard scale images


<i>Latya </i>2000
Latya 2000


Graphics


<i>Thadin Daeng</i> 2004
Thadin Daeng 2004


Project history

Ordered in 1996, Italian Gaeta class. GRP foam-core hull. Have decompression chamber for two of seven mine-disposal divers. MWS-80-6 mine countermeasure system.

Modernizations

None.

Naval service

No significant events.
