KUT medium landing ships (1944-1945/1946-1962)

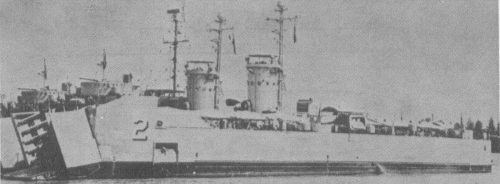

Phai 1970s

Ships


Name No Yard No Builder Laid down Launched Comm Fate
เกาะกูด [Kut] (ex-LSM333) 1, 1992- 731   Pullman Standard Car, Chicago, USA 6/1944 13.10.1944 11.1944 // 10.1946 sunk as target 17.9.2006
เกาะไผ่  [Phai] (ex-LSM338) 2   Pullman Standard Car, Chicago, USA 8/1944 5.12.1944 1.1945 // 10.1946 stricken 1990
เกาะคราม [Kram] (ex-LSM469) 3, 1992- 732   Brown SB, Houston, USA 1945 1945 3.1945 // 5.1962 sunk as target 2.2003


Technical data


Displacement standard, t

520

Displacement full, t1095
Length, m

59.9 wl 62.0 oa

Breadth, m

10.5

Draught, m

landing: 1.07 fore, 2.13 aft

No of shafts2
Machinery

4 General Motors diesels

Power, h. p.

2800

Max speed, kts

12.5 - 13.2

Fuel, t

diesel oil

Endurance, nm(kts)4900 (12)
Armament

1 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10

Military load

5 medium or 3 heavy tanks or 6 LVT or 9 DUKW, 48 - 54 marines

Electronic equipment

SO-8 or SPS-5 radar

Complement60


Standard scale images


<i>Kram </i>1965
Kram 1965
<i>Kut</i> 1946
Kut 1946


Graphics

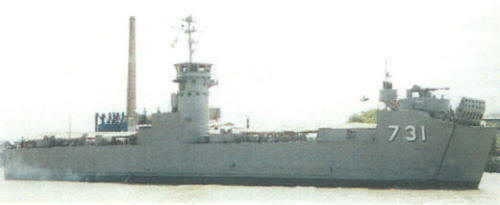

<i>Kut </i>1998
Kut 1998
<i>Phai </i>1970s
Phai 1970s


Project history

Former LSM1 class medium landing ships. Kram was transferred under MAP.

Modernizations

None.

Naval service

No significant events.
