RATTANAKOSIN corvettes (1986-1987)

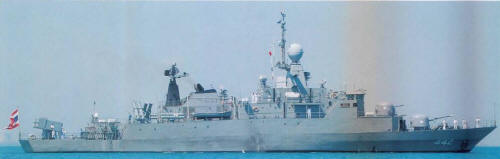

Sukhotai 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| รัตนโกสินทร์ [Rattanakosin] | 1, 1992- 441 | Tacoma Boat, USA | 6.2.1984 | 21.3.1986 | 26.9.1986 | in service (2019) | |
| สุโขทัย [Sukhotai] | 2, 1992- 442 | Tacoma Boat, USA | 26.3.1984 | 20.7.1986 | 19.2.1987 | in service (2019) |
Technical data
| Displacement standard, t | 840 |
|---|---|
| Displacement full, t | 960 |
| Length, m | 76.8 |
| Breadth, m | 9.55 |
| Draught, m | 2.44 hull |
| No of shafts | 2 |
| Machinery | 2 MTU 20V1163 TB83 diesels |
| Power, h. p. | 14730 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(16) |
| Armament | 2 x 4 Harpoon SSM (8 RGM-84A), 1 x 8 Albatros SAM (24 Aspide), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 OTO-Breda Compact, 2 x 1 - 20/90 GAM-B01, 2 x 3 - 324 Mk 32 mod.5 TT (6 Stingray) |
| Electronic equipment | Decca 1226, ZW-06, DA-05, WM-25, LIROD-8 radars, DSQS-21C sonar, Newton ECM suite, Dagaie decoy RL, Mini-SADOC CCS |
| Complement | 140 |
Standard scale images
Rattanakosin 2000
Graphics
Sukhotai 2008
Project history
US PFMM Mk 16 class. Plans to build a third ship in Thailand were canceled. May be used as flagships for attack craft squadrons.
Modernizations
None.
Naval service
No significant events.
