HUA HIN corvettes (2000-2001)

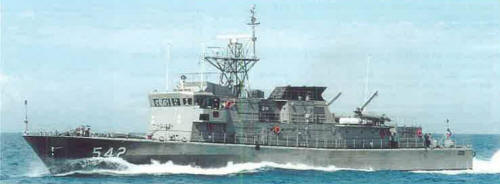

Klaeng 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| หัวหิน [Hua Hin] | 541 | ASEAN Marine Services PC, Bangkok | 3.1997 | 3.3.1999 | 25.3.2000 | in service (2019) | |
| แกลง [Klaeng] | 542 | ASEAN Marine Services PC, Bangkok | 5.1997 | 19.4.1999 | 17.1.2001 | in service (2019) | |
| ศรีราชา [Si Racha] | 543 | ASEAN Marine Services PC, Bangkok | 12.1997 | 6.9.1999 | 17.1.2001 | in service (2019) |
Technical data
| Displacement standard, t | 450 |
|---|---|
| Displacement full, t | 630 |
| Length, m | 56.7 pp 62.0 oa |
| Breadth, m | 8.90 |
| Draught, m | 2.20 hull |
| No of shafts | 3 |
| Machinery | 3 Paxman 12VP185 diesels |
| Power, h. p. | 10305 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(15) |
| Armament | 541, 543: 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 542: 1 x 1 - 76/50 Mk 26, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | Sperry SM5000 APAR, Sperry RASCAR radars |
| Complement | 45 |
Standard scale images
Hua Hin 2005
Graphics
Klaeng 2001
Project history
Variation of Khamronsin without ASW abilities. Optronic fire control system is planed to be installed later.
Modernizations
None.
Naval service
No significant events.
