Bangpakong 2002

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
เจ้าพระยา [Chao Phraya]	455		Hudong, Shanghai, China	4.1989	24.6.1990	5.4.1991	in service (2019)

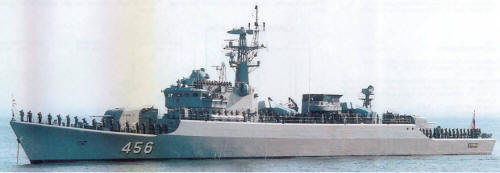

บางปะกง [Bangpakong]	456		Hudong, Shanghai, China	1989	24.7.1990	20.7.1991	in service (2019)

Technical data

Displacement standard, t	1675
Displacement full, t	1925
Length, m	103.2
Breadth, m	10.8
Draught, m	3.10 hull
No of shafts	2
Machinery	4 MTU 20V1163 TB83 diesels
Power, h. p.	29440
Max speed, kts	30
Fuel, t	diesel oil
Endurance, nm(kts)	4000(15)
Armament	4 x 2 C-801 SSM (8 C-801), 2 x 2 - 100/56 type 79, 4 x 2 - 37/63 type 76, 2 x 5 type 86 ASWRL
Electronic equipment	Decca RM1290A/D, type 354, type 343, type 341, type 352C radars, SJD-5A sonar, Newton-Beta ECM suite, 2x type 945 decoy RL, ZKJ-3 CCS
Complement	168

Standard scale images

Graphics

Project history

Chinese project 053HT, employed primarily for antipiracy and marine police functions, used also for training. Ordered 18.7.1988.

Modernizations

2012, both: - 4 x 2 C-801 SSM, ZKJ-3 CCS; + 4 x 2 C-802 SSM (8 C-802), RA71CA radar, COSYS CCS

Naval service

No significant events.
