Chakri Naruebet 2004

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
จักรีนฤเบศร [Chakri Naruebet]	911		Bazán, Ferrol, Spain	12.7.1994	20.1.1996	10.8.1997	in service (2019)

Technical data

Displacement standard, t
Displacement full, t	11800
Length, m	164.1 pp 174.6 fd 182.7 oa
Breadth, m	22.5 wl 30.5 oa
Draught, m	6.12
No of shafts	2
Machinery	CODOG: 2 General Electric LM2500 gas turbines / 2 Bazán-MTU 16V1163 TB83 diesels
Power, h. p.	44250 / 11200
Max speed, kts	27
Fuel, t	gas turbine / diesel oil
Endurance, nm(kts)	7150(16)
Armament	2 x 1 - 12.7/90, 12-18 aircraft (AV-8S Matador attackers, S-70B-7 Seahawk helicopters)
Military load	455 troops (675 for the short route)
Electronic equipment	2x type 1007, SPS-52C, SPS-64 radars, 4x SRBOC Mk 36 decoy RL, SLQ-25 Nixie torpedo decoy, UYK-43C CCS
Complement	600

Air group

Year	Attackers	Helicopters
1997	6 AV-8S Matador	4 S-70B-7 Seahawk
2007	---	6 S-70B-7 Seahawk, 2 MH-60S Knighthawk

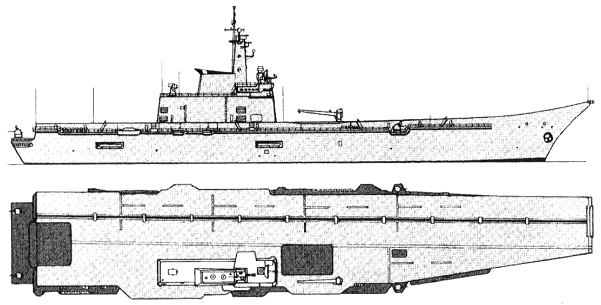

Standard scale images

Graphics

Aircraft facilities

(fd - ~4,000 m², ha - 2,077 m² / ~12,000 m³): Flight deck: 174.6x27.5m. Hangar: 100.0x23.8x m. There are 2 elevators (1 centerline and 1 deck-edge, 20t, 13.5x13.5m). There is a ski0jump. Aircraft fuel stowage: 60t. Aviation ordnance stowage is 100t.

Project history

Ordered in 1992 under builder's BSAC 160 design, as fact modified Spanish Principe de Asturias. Intended for disaster relief duties in peacetime, ASW operations and, when VSTOL attackers were based, for air attacks, amphibious assault operations (for what 5 CH-47 Chinook helicopters can be based on the flight deck and 20 vehicles can be accommodated in hangar). Maximal speed under diesels is 16kts. Ship has 174.6x27.5m flight deck with 12° ski-jump fwd. 5 landing spots and 2 elevators. Hangar (100x23.8m and 15x5.75m) is divided on two by fire bulkhead. 16t crane. There are a hospital with 12 beds and apartments for royal family. Plans included installation of Sea Giraffe radar and 9LVMk 4 CCS. Ship is fitted for installation of 1x8 VLS Sea Sparrow SAM (8 RIM-7M) with STIR 1.8 fire control radar, 4 Phalanx CIWSs, 2 30mm guns, SLQ-32(v)3 and SLQ-380 Aldebaran ECM suites, but that equipment was not acquired due to financial reasons.

Modernizations

2001: + 3 x 8 Sadral SAM (24 Mistral)

2006: - ability to carry fixed-wing aircraft

Naval service

No significant events.
