T991 patrol boats (2007)
Tor 991 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ต.991 [Tor 991] | 991 | Naval D Yd, Bangkok | 30.4.2007 | 7.9.2007 | in service (2019) | ||
| ต.992 [Tor 992] | 992 | Marsun, Bangkok | 7.9.2007 | 12.2007 | in service (2019) | ||
| ต.993 [Tor 993] | 993 | Marsun, Bangkok | 7.9.2007 | 12.2007 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 185 |
| Length, m | 38.7 |
| Breadth, m | 6.49 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V4000 M90 diesels |
| Power, h. p. | 7400 |
| Max speed, kts | 29 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(12) |
| Armament | 2 x 1 - 30/80 DS-30B, 2 x 1 - 12.7/90 |
| Electronic equipment | nav. radar, Mirador e/o director |
| Complement | 29 |
Graphics

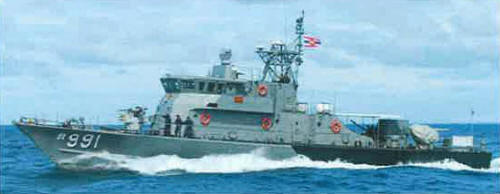

Tor 991 2007
Project history
Based on the older T93 class. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
