T94 patrol boats (1981-1988)

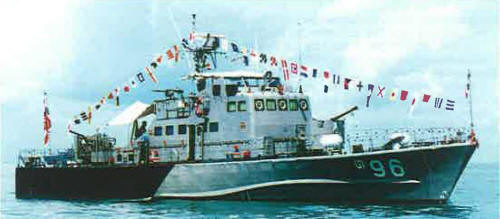

Tor 96 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ต.94 [Tor 94] | 94 | Royal Thai Naval DY, Bangkok | 16.9.1981 | in service (2019) | |||
| ต.95 [Tor 95] | 95 | Royal Thai Naval DY, Bangkok | 27.12.1982 | in service (2019) | |||
| ต.96 [Tor 96] | 96 | Royal Thai Naval DY, Bangkok | 27.12.1982 | in service (2019) | |||
| ต.97 [Tor 97] | 97 | Royal Thai Naval DY, Bangkok | 16.9.1983 | in service (2019) | |||
| ต.98 [Tor 98] | 98 | Royal Thai Naval DY, Bangkok | 7.3.1985 | in service (2019) | |||
| ต.99 [Tor 99] | 99 | Royal Thai Naval DY, Bangkok | 9.1.1988 | in service (2019) |
Technical data
| Displacement standard, t | 117 |
|---|---|
| Displacement full, t | 125 |
| Length, m | 32.0 wl 36.0 oa |
| Breadth, m | 5.70 |
| Draught, m | 1.40 hull 1.65 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 12V538 TB81 diesels |
| Power, h. p. | 3300 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 700(21) |
| Armament | 94-98: 2 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90 99: 1 x 1 - 40/70 Breda-Bofors 564, 1 x 1 - 20/90 GAM-B01 |
| Electronic equipment | 94-98: SPS-35 radar 99: SPS-35 radar, Sea Archer Mk 1A e/o director |
| Complement | 23 |
Graphics
Tor 96 2001
Project history
Revised version of T91.
Modernizations
None.
Naval service
No significant events.
