SIAM / THAILAND
COASTAL FORCES
8! T91 patrol boats (1968-1979)

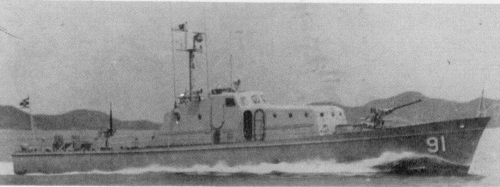

T91 1970
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ต.91 [Tor 91] | 91 | Royal Thai Naval DY, Bangkok | 1965 | 12.8.1968 | in service (2019) | ||
| ต.92 [Tor 92] | 92 | Royal Thai Naval DY, Bangkok | 1973 | 21.12.1976 | in service (2019) | ||
| ต.93 [Tor 93] | 93 | Royal Thai Naval DY, Bangkok | 1973 | 10.8.1979 | in service (2019) |
Technical data
| Displacement standard, t | 88 |
|---|---|
| Displacement full, t | 100 |
| Length, m | 31.8 |
| Breadth, m | 5.36 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 3300 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 700(21) |
| Armament | 1 x 1 - 40/60 Mk 3, 4 x 1 - 20/70 Mk 10 |
| Electronic equipment | Decca radar |
| Complement | 21 |
Graphics
T91 1970
Project history
Domestic built patrol craft.
Modernizations
1985, T91: - 1 x 1 - 20/70; + 1 x 1 - 20/85 GAM-B01
1985, T92: - 1 x 1 - 20/70; + 1 x 1 - 40/60 Mk 3
Naval service
No significant events.
