T227 patrol boat (2007)
Tor 227 2006
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ต.227 [Tor 227] |
Marsun, Bangkok: Tor 227 |
2007: Tor 227 |
None |
None | in service (2019): Tor 227 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 42 |
| Length, m | 21.3 |
| Breadth, m | 5.36 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | nav. radar |
| Complement | 8 |
Graphics

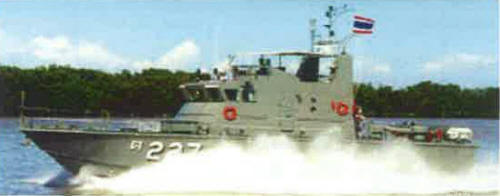

Tor 227 2006
Project history
Built as replacement for lost in tsunami Tor 215.
Modernizations
None.
Naval service
No significant events.
