FIGHTING SHIPS OF THE WORLD
SIAM / THAILAND
COASTAL FORCES
T213 patrol boats (1980-1984)
Tor 219 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ต.213-226 [Tor 213-226] |
Italthai, Bangkok: Tor 213-226 |
1980: Tor 213-215 1981: Tor 216-223 1982: Tor 224 1984: Tor 225, 226 |
Tor 215 (tsunami 26.12.2004) |
None | in service (2019): Tor 213, 214, 216-226 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 34 |
| Length, m | 17.7 pp 19.8 oa |
| Breadth, m | 5.30 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MTU 6V396 TC82 diesels |
| Power, h. p. | 1390 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 350(15) |
| Armament | 1 x 1 - 20/90 GAM-B01, 1 x (1 - 12.7/90 + 1 x 1 - 81/12 M29 mortar) |
| Electronic equipment | Decca 110 radar |
| Complement | 9 |
Graphics

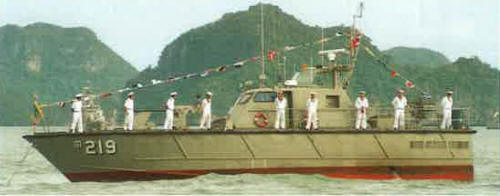

Tor 219 2003
Project history
Intended for fishery protection. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
