PONO landing craft (1995-2016)
Pono 2001
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
L08 Pono L09 Kibua LC13 Mbono LC14 Sehewa |
Guangzhou, China: L08, 09, LC13, 14 |
1995: L08, 09 2016: LC13, 14 |
none |
none |
in service (2020): L08, 09, LC13, 14 |
Technical data
| Displacement standard, t | 58 |
|---|---|
| Displacement full, t | 85 |
| Length, m | 24.8 |
| Breadth, m | 5.20 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 12V150C diesels |
| Power, h. p. | 600 |
| Max speed, kts | 11.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 450(11.5) |
| Armament | 2 x 2 - 14.5/93 |
| Military load | 50 t of cargo or 150 troops |
| Electronic equipment | none |
| Complement | 12 |
Standard scale images
Pono 2000
Graphics

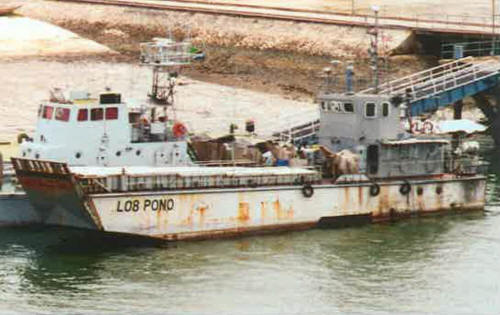

Pono 2001
Project history
Chinese type 069 LCM-type craft.
Modernizations
None.
Naval service
No significant events.
