YUNG FENG minehunters (1991)





Yung Feng 2000

Ships


Name No Yard No Builder Laid down Launched Comp Fate
永豐 [Yung Feng] (ex-Explorer-I) 1301   Abeking & Rasmussen, Lemwerder, Germany 14.9.1988 26.4.1990 12.7.1991 in service (2019)
永嘉 [Yung Chia] (ex-Explorer-II) 1302   Abeking & Rasmussen, Lemwerder, Germany 14.9.1988 26.4.1990 12.7.1991 in service (2019)
永定 [Yung Ting] (ex-Explorer-III) 1303   Abeking & Rasmussen, Lemwerder, Germany 23.3.1989 22.10.1990 2.5.1991 in service (2019)
永順 [Yung Shun] (ex-Explorer-IV) 1305   Abeking & Rasmussen, Lemwerder, Germany 23.3.1989 22.10.1990 12.7.1991 in service (2019)


Technical data


Displacement standard, t

500

Displacement full, t

540

Length, m

49.7

Breadth, m

10.8

Draught, m

2.80

No of shafts

2

Machinery

2 MTU 8 V 396 TB93 diesels

Power, h. p.

2180

Max speed, kts

15

Fuel, t

diesel oil

Endurance, nm(kts)

2500(12)

Armament

2 x 1 - 12.7/90, Pinguin A1 USV, Pinguin B3 USV

Electronic equipment

Decca radar, TSM 2022 sonar

Complement

45



Graphics

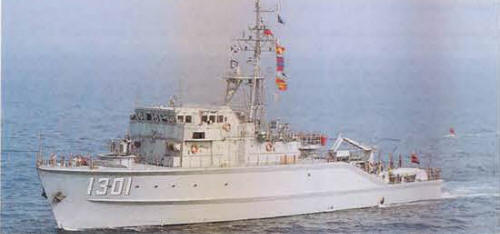

<i>Yung Feng </i>2000
Yung Feng 2000


Project history

Two ordered in 1988 and two in 1989. Were delivered without armament or mine-countermeasures equipment in blue hull/white superstructure paint scheme and lettered "CPC Offshore" on sides for the China Petroleum Corporation, which had ostensibly ordered them as "multipurpose offshore vessels" intended to "support oil rigs, oceanographic research, firefighting, pollution control, and search and rescue." Not formally commissioned until March 1995. Planned order for up to eight more canceled due to a procurement scandal over spare parts for the first four, which have proven difficult to maintain. Wooden hull construction. Thales IBIS-V mine-countermeasures data system. Each can carry one Pinguin A1 search/classification and one Pinguin B3 mine localization and disposal ROV.

Modernizations

1997, all: + 1 x 1 - 20/68 T75

2010s, all: - Pinguin A1 USV, TSM 2022 sonar; + Pinguin B3 USV (2nd), SA 950 sonar

Naval service

No significant events.
