TAINAN patrol ships (2011-2013)

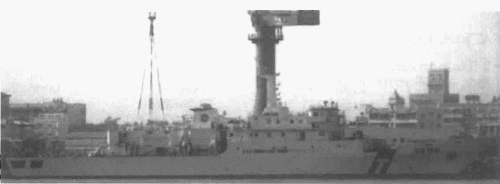

Tainan 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 台南 [Tainan] | CG126 | Chung Hsin SBC, Kaohsiung | 9.5.2008 | 29.12.2009 | 26.1.2011 | in service (2019) | |
| 新北 [Hsin Bei] | CG127 | Chung Hsin SBC, Kaohsiung | 24.9.2010 | 30.4.2012 | 30.3.2013 | in service (2019) |
Technical data
| Displacement standard, t | 2000 |
|---|---|
| Displacement full, t | 2460 |
| Length, m | 87.3 pp 98.5 oa |
| Breadth, m | 13.2 |
| Draught, m | 3.80 |
| No of shafts | 2 |
| Machinery | CG126: 2 MTU 20V1163 TB93 diesels CG127: 2 MAN 16 V 28/34D diesels |
| Power, h. p. | 20130 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 7500(15) |
| Armament | CG126: 1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90, helicopter deck CG127: 2 x 1 - 20/68 T75, 2 x 1 - 12.7/90, helicopter deck |
| Electronic equipment | 2x Furuno radars |
| Complement | 68 |
Standard scale images
Tainan 2010
Graphics
Tainan 2010
Project history
Large patrol cutters.
Modernizations
None.
Naval service
No significant events.
