SHUN HU 7 patrol ships (2011-2013)

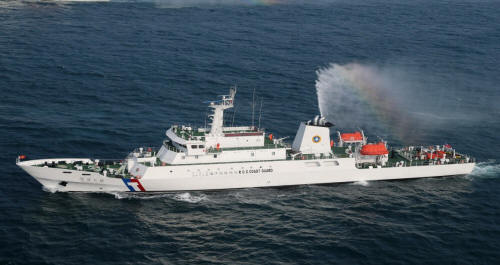

Shun Hu 7

Ships


Name No Yard No Builder Laid down Launched Comm Fate
巡護七 [Shun Hu 7] HH No. 7   Chung Hsin SBC, Kaohsiung 20.11.2008 30.12.2009 26.1.2011 in service (2019)
巡護八 [Shun Hu 8] HH No. 8   Chung Hsin SBC, Kaohsiung 1.10.2010 6.1.2012 30.3.2013 in service (2019)
巡護九 [Shun Hu 9] HH No. 9   Chung Hsin SBC, Kaohsiung   9.4.2012 28.6.2013 in service (2019)


Technical data


Displacement standard, t
Displacement full, t

1845

Length, m

75.6 pp 84.5 oa

Breadth, m

12.5

Draught, m

4.60

No of shafts

2

Machinery

2 Caterpillar C280-12 diesels

Power, h. p.

10890

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)15000(12)
Armament

1 x 1 - 20/90 GAM-B01

Electronic equipment

2x Furuno radars

Complement

40



Graphics


<i>Shun Hu 7</i>
Shun Hu 7


Project history

Large patrol ships.

Modernizations

None.

Naval service

No significant events.
