FIGHTING SHIPS OF THE WORLD
TAIWAN
NON-NAVAL FORCES
3! MOU HSING patrol ships (1988)

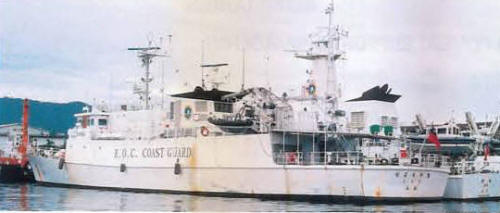

Fu Hsing 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 謀星 [Mou Hsing] | 1.2000- CG105 | Wilton-Fijenoord, Schiedam, Netherlands | 13.2.1988 | 14.6.1988 | Coast Guard 1.2000, in service (2019) | ||
| 福星 [Fu Hsing] | 1.2000- CG106 | Wilton-Fijenoord, Schiedam, Netherlands | 13.2.1988 | 14.6.1988 | Coast Guard 1.2000, in service (2019) |
Technical data
| Displacement standard, t | 700 |
|---|---|
| Displacement full, t | 850 |
| Length, m | 65.4 |
| Breadth, m | 9.60 |
| Draught, m | 3.22 |
| No of shafts | 3 |
| Machinery | 3 MTU 16V538 TB93 diesels |
| Power, h. p. | 13200 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500(12) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | 2x Racal-Decca radars |
| Complement | 54 |
Graphics
Fu Hsing 2002
Project history
Ordered in 1986.
Modernizations
None.
Naval service
No significant events.
