MIAOLI patrol ships (2016)
Miaoli 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 苗栗 [Miaoli] | CG131 | Chung Hsin SBC, Kaohsiung | 4.11.2014 | 6/2015 | in service (2019) | ||
| 桃園 [Taoyuan] | CG132 | Chung Hsin SBC, Kaohsiung | 28.1.2015 | 8/2015 | in service (2019) | ||
| 台東 [Taitung] | CG133 | Chung Hsin SBC, Kaohsiung | 5.5.2015 | 2/2016 | in service (2019) | ||
| 屏東 [Pingtung] | CG135 | Chung Hsin SBC, Kaohsiung | 14.8.2015 | 8/2016 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 1900 |
| Length, m | 87.6 |
| Breadth, m | 12.8 |
| Draught, m | 3.55 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 19500 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6000(12) |
| Armament | 2 x 1 - 20/68 T75, 2 x 1 - 12.7/90, helicopter deck |
| Electronic equipment | 2x radars |
| Complement | 58 |
Graphics

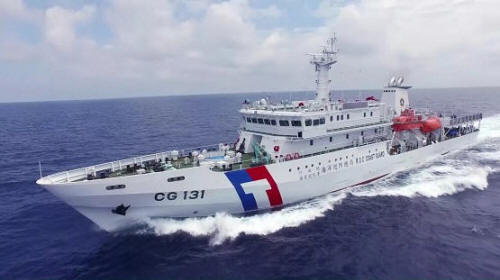

Miaoli 2016
Project history
Large patrol cutters.
Modernizations
None.
Naval service
No significant events.
© Ivan Gogin, 2017-19
