HSUN HSING patrol craft (1986)
Hsun Hsing 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 潯星 [Hsun Hsing] | 1.2000- CG110 | China SB, Keelung | 1986 | Coast Guard 1.2000, deleted 11.2005 |
Technical data
| Displacement standard, t | 239 |
|---|---|
| Displacement full, t | 264 |
| Length, m | 44.5 |
| Breadth, m | 7.50 |
| Draught, m | 1.70 |
| No of shafts | 3 |
| Machinery | 3 MTU 16V396 TB93 diesels |
| Power, h. p. | 8160 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 3 x 1 - 12.7/90 |
| Electronic equipment | 2x JRC radars |
| Complement | 41 |
Graphics

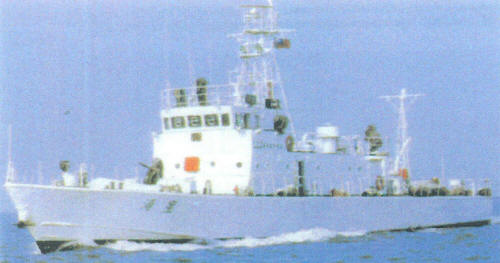

Hsun Hsing 2001
Project history
Small Customs patrol craft.
Modernizations
None.
Naval service
No significant events.
